LMU-5000

Enterprise 3G Linux Cellular Broadband Router, Gateway and Location Messaging Unit
CalAmp’s LMU-5000 has the versatility, speed, and expandability to meet customers’ ever challenging needs in fixed or mobile broadband applications. With a powerful, yet lower power, 400Mhz ARM9 embedded processor, the LMU-5000 boasts an adaptable platform featuring: 3G broadband routing, cellular gateway functions, a Programmable Event Generation engine, built-in 3D g-force measurements, multiple power management sleep modes, leading GPS sensitivity tracking technologies, and multiple interfaces all brought together under a flexible Linux operating system.

Competitive Edge
CalAmp’s LMU-5000 has the versatility, speed, and expandability to meet customers’ ever challenging needs in fixed or mobile broadband applications. With a powerful, lower power, 400MHz ARM9 embedded processor, the LMU-5000 boasts an adaptable platform featuring: 3G broadband routing, cellular gateway functions, a Programmable Event Generation engine, built-in 3-axis g-force measurements, multiple power management sleep modes, leading GPS sensitivity tracking technologies, and multiple interfaces all brought together under a flexible Linux operating system.

Expanded Interface

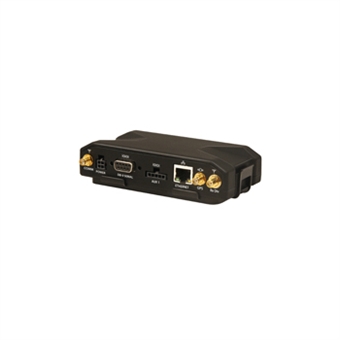

The LMU-5000 comes equipped with an Ethernet 10/100 port, both host and device USB ports, RS232 serial port, switch power TTL serial port, two 1-wire busses, seven inputs and seven outputs, and four A/D inputs. The LMU-5000 also supports advanced peripherals including laptops, USB dongles, Mobile Data Terminals (MDTs), RFID tags, and more.

Flexibility
The LMU-5000 software environment also employs CalAmp’s industry leading on-board alert engine, PEG™ (Programmable Event Generator). The advanced PEG engine monitors external conditions and supports customer-defined, exception-based rules. PEG continuously monitors the environment and responds instantaneously to pre-defined threshold conditions related to time, date, motion, location, geo-zone, input and other event combinations.

Over-the-Air Serviceability
The LMU-5000 also incorporates CalAmp’s over-the-air device management and maintenance software, PULS™ (Programming, Update and Logistics System). Linux applications, configuration parameters, PEG™ scripts, and firmware can all be updated over-the-air. You can also monitor unit health status across your installations to quickly identify issues before they become expensive problems.

All these capabilities packed into a small size are a competitive package second to none, designed to lower the cost of delivering, supporting, and growing countless broadband applications.

    Features
  • Superior 3G cellular and GPS wireless performance
  • ARM 9 400MHz low power embedded processor
  • Linux 2.6 operating system
  • IP router and more
  • Built-in 3-axis accelerometer for driver behavior, motion and impact sensing
  • Advanced peripherals support
  • Comprehensive I/O system
  • 10/100 Ethernet interface
  • Host and client USB
  • Switched power serial ports
