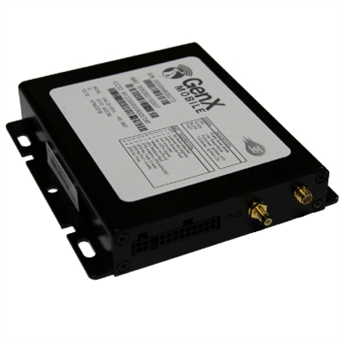

GNX-20

The GNX-20 3G HSPA is a highly configurable, feature rich, mobile resource management device designed to service a wide variety of market and industry requirements. The GNX-20 3G HSPA supports the 3G HSPA wireless carrier network infrastructure which enables high speed wireless communication and throughput between wireless products and wireless carriers. The GNX-20 3G HSPA includes features like an integrated Ethernet port for mobile computer connectivity and wireless communication. An internal auto calibrating 3-axis accelerometer to support service provider applications like driver safety and driver performance and support for multiple peripherals.

Inputs and Outputs
The GNX-20 3G HSPA I/O capabilities enable multiple configurations, peripheral support and monitoring including digital inputs and outputs, relays, RS-232 serial, 10Base-T Ethernet, 1-wire peripheral communication, vehicle conditions and activity. The GNX-20 supports a Wi-Fi Bridge, Driver ID, multiple temperature sensors, Mag Strip Reader, backup battery, GPS data (NMEA) and other peripheral applications.

Options and Versatility
The GNX-20 3G HSPA configuration capabilities enable support of everything from basic vehicle tracking to full featured service applications with support for multiple peripherals.

Easy Over The Air Servicing (Patented Technology)
The GNX-20 configuration parameters and firmware are upgradeable over-the-air, and can be pushed to the GNX-20 using IP or text messaging, or autonomously pulled by the GNX-20 from any TFTP or FTP server. This allows feature updates to be deployed to a fleet of GNX-20’s with minimal user intervention, and without proprietary server software. This reduces field service visits and can prolong the serviceable life of the GNX-20.
